Glass is one of the most precisely engineered materials in modern construction. The difference between a standard pane and a high-performance one often comes down to how it was processed. Knowing how tempered glass is made helps professionals evaluate quality, anticipate limitations, and specify the right product for demanding applications.
How Is Tempered Glass Made?

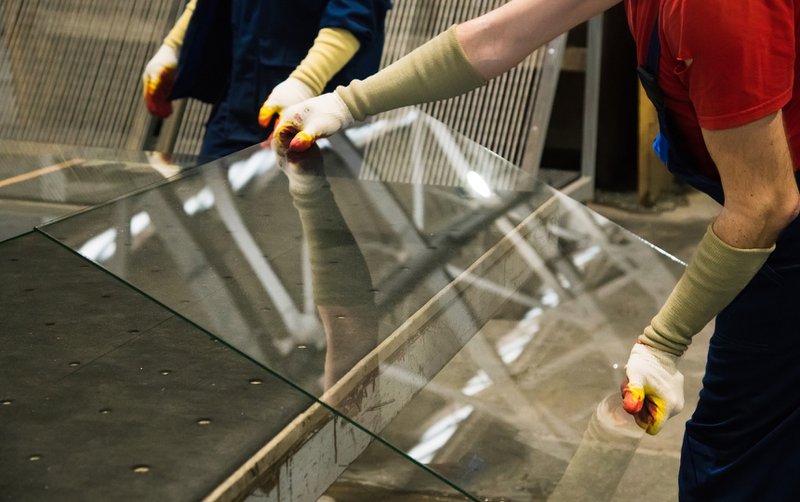

The tempering process begins with a sheet of float glass that has already been cut, edged, and drilled to its final dimensions. All fabrication work must be completed at this stage because the glass cannot be modified once it has been tempered. Any holes, notches, or cutouts required by the design are made before the glass enters the furnace.
The prepared glass is fed into a tempering furnace on a series of ceramic rollers. These rollers keep the glass moving continuously to prevent uneven heating, which would compromise the final product. The furnace heats the glass to approximately 620 to 650 degrees Celsius, well above the transition point at which glass begins to soften.
Once the glass reaches the target temperature, it is transferred immediately to a quench section. High-pressure air blasts are applied simultaneously to both surfaces of the glass. This rapid, uniform cooling locks the thermal stresses into the material and completes the tempering process.
Why the Quench Stage Determines Final Strength
The quench stage is the defining step in the entire process. The speed and uniformity of cooling directly determine the level of stress built into the glass. A well-executed quench produces the surface compression and internal tension that give tempered glass its strength.
If the cooling is uneven, the stress distribution becomes irregular. This can result in a pane that is weaker in certain areas or more prone to spontaneous breakage. Consistent quench performance is one of the primary factors that separates high-quality tempered glass from substandard production.
Manufacturers control the quench by managing airflow velocity, nozzle geometry, and the distance between the glass surface and the air jets. These parameters are calibrated based on the thickness of the glass being processed. Thicker glass requires a different quench profile than thinner glass to achieve the same level of surface compression.
How Glass Thickness Affects the Tempering Process
Glass thickness plays a significant role in how tempering is applied and what the final product can do. Thinner glass, such as 3mm or 4mm, heats and cools faster than thicker panes. This shorter thermal cycle requires more precise control to avoid distortion or inconsistent stress.
Thicker glass, such as 6mm or 8mm, retains heat longer and requires a longer furnace time followed by a more sustained quench. The slower thermal cycle allows for more uniform stress distribution across the pane. This is one reason thicker tempered panes tend to exhibit fewer optical distortions than thinner ones.
The thickness range most commonly used in sealed unit production spans 3mm to 6mm. Each thickness responds differently to the tempering cycle, and processing parameters are adjusted accordingly. Suppliers who work across this full range must maintain precise equipment calibration for each glass thickness they run.
Roller Wave and Optical Distortion in Tempered Glass
One characteristic of the tempering process that affects end-use performance is roller wave distortion. As the glass moves across ceramic rollers inside the furnace at elevated temperatures, slight undulations can form on the surface. These undulations create optical distortion that becomes visible under certain lighting conditions.
Roller wave is an inherent result of the horizontal tempering process and cannot be completely eliminated. However, it can be minimized through proper equipment maintenance, optimized roller spacing, and controlled heating rates. Glass with excessive roller wave can cause visual complaints from building occupants, particularly in reflective facades.
Specifiers who are concerned about optical quality should ask suppliers about their distortion standards and testing procedures. Industry standards such as ASTM C1048 include guidance on acceptable distortion levels. Working with a supplier who measures and documents optical quality is an important safeguard for high-visibility applications.
The Role of Nickel Sulfide Inclusions in Spontaneous Breakage
One risk associated with tempered glass is spontaneous breakage caused by nickel sulfide (NiS) inclusions. These microscopic particles occur naturally in the raw materials used to make float glass. During the tempering process, NiS inclusions undergo a phase change that can cause them to expand slowly over time.
If an inclusion expands enough while inside a highly stressed pane, it can trigger spontaneous breakage with no external force applied. This type of failure can occur weeks, months, or even years after installation. It is more common in fully tempered glass than in heat-strengthened glass because the stress levels are higher.
Heat soaking is the standard method used to reduce this risk. The process involves holding tempered glass at an elevated temperature for several hours after tempering to accelerate the phase change in any NiS inclusions present. Panes that contain problematic inclusions will break during the heat soak rather than after installation.
How Processing Quality Carries Through to the Sealed Unit
The quality of tempered glass processing directly affects the performance of the sealed units it becomes part of. A pane with poor stress distribution or excessive distortion compromises the entire assembly. These defects become difficult to address once the unit has been sealed.
Sealed unit manufacturers who source tempered glass rely on their suppliers to deliver consistent, well-processed panes. Dimensional accuracy matters as much as mechanical performance. A pane that is out of square or has inconsistent edge quality creates problems during assembly and affects the long-term seal integrity of the unit.
Traceability is another quality consideration. Knowing the source, thickness, and processing parameters of each tempered pane allows manufacturers to maintain consistent quality across production runs. This level of documentation supports warranty claims and code compliance verification.
